V1.1 FPC-22PIN rpi-zero interface
This document also applies to V1.2, V1.3。
Main Features
- standard rpi-zero 22pin-0.5mm pitch FPC.
- IO voltage is 3.3V
- GPIOs are avaliable in different forms.
Circuit

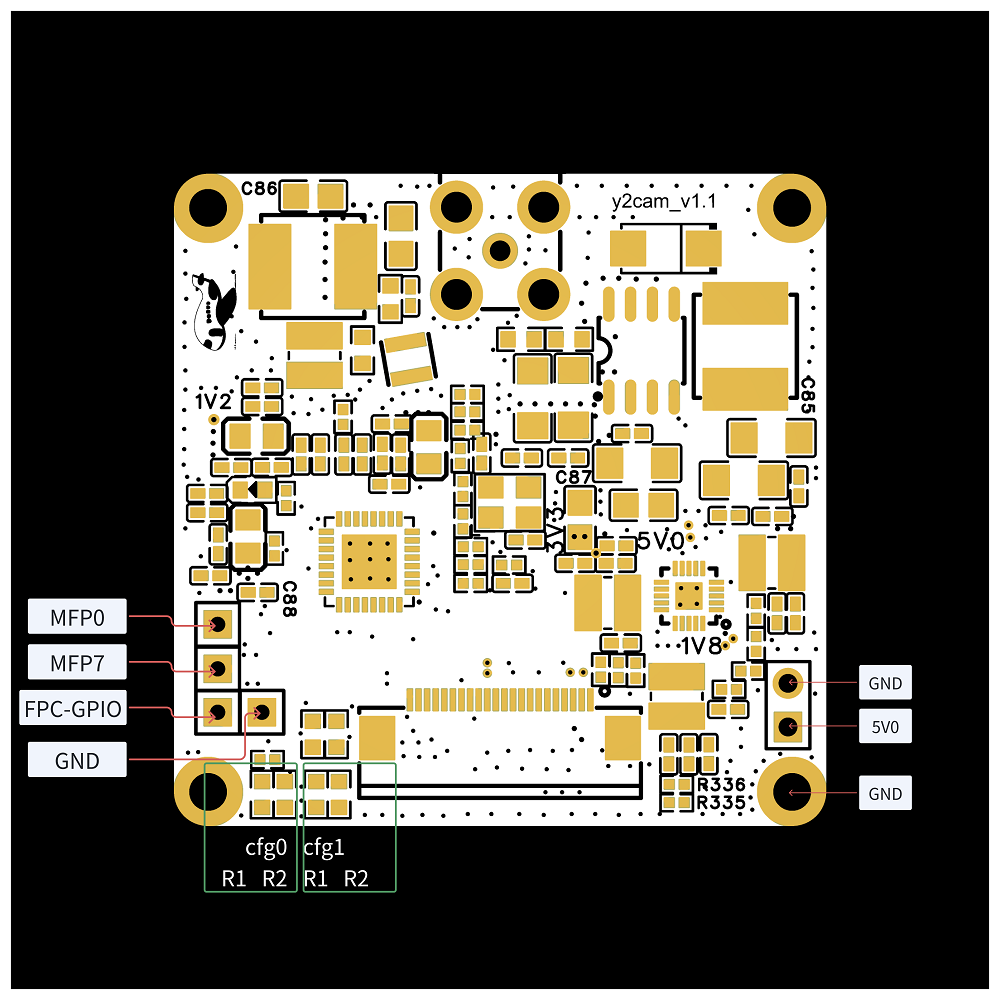

PCB layout
FPC interface
User Guide
- MIPI port, no lane swap, no PN swap.
- VDDIO is 3.3V, applies to ALL gpios and I2C.
- Default i2c addr：0x80, default mode：GMSL2/6Gbps.
